Powder being non-conductive cannot be charged internally. It can only be charged externally i.e. electrostatic charge. The electrostatic charge can be imparted with high voltage discharge, called corona charging, or by frictional contact with the inside of the gun barrel, called tribo charging. In a corona charging system, 100 KV is generated in the gun and released at the gun tip. The free ions created in the field rush towards the nearest ground (the object to be coated). Powder is sprayed through the gun using compressed air. As the powder passes through the electrostatic field created by release of 100 KV at the gun tip, it picks up a charge and gets deposited on the grounded substrate.
Powder Coating Equipment for Fluorescent Penetrant Inspection Process ( FPI Inspection)

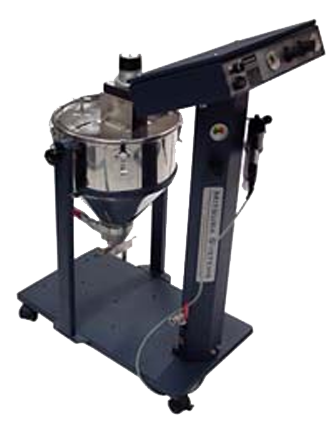

Mitsuba Corona Powder Coating Equipment To Spray Developer Powder
Spraying developer powder is one of the most crucial steps in Fluorescent Penetrant Inspection process. Independent research has confirmed that Electrostatic spray of the developer powder offered the most sensitive result as compared to non electrostatic powder spray. Mitsuba has mastered the art and science of electrostatic spray of developer powder. Used by leading aerospace companies, defense organization.
Powder Spray Gun for Developer Powder
Summary of Benefits:
- Guaranteed 100 KV at Gun Tip for the entire life of the gun
- Entire range of nozzles to select from for highest transfer efficiency.
- Patented Infiniti™ technology (US Patent No. 5678770) protects your gun against any failure. NO BREAKDOWN! NO EXPENSIVE REPAIRS!
- Complete control in your hands with Smart Tracker diagnosis system. Locate any problem instantly and rectify the problem yourself. Minimise downtime and external dependency
- Special powder feeding system for developer powder.
- Most uniform deposition of powder.
The only powder coating gun with a patented replaceable Power Cartridge (Mitsuba US patent No. 5678770). In the unlikely event of a malfunction all you do is…
How does the Infiniti™ Technology work?
Your Insurance against high voltage failure saving your Time & Money
Frequently Asked Questions
Powder spray gun has a circuit which generates 100 KV and releases the same at the gun tip. In event of high voltage failure all you need to do is pull the barrel out and change the power cartridge. The power cartridge has the patented (US Patent- 5678770) Infiniti™ technology which protects the gun barrel from any damage. Other guns available in market do not have the Infiniti™ feature. In the event of high voltage failure one needs to buy the new gun or send the damaged gun to the manufactures for expensive repair work.
The new Smart Tracker performance monitor is a high end diagnostic system which constantly monitors and indicates the performance of every component in the equipment. Even unskilled labour can detect a trouble spot with ease. And thanks to the unique plug in-plug out design, the problem can be rectified immediately. In a nutshell, Smart Tracker ensures your system is always in a perfect working condition. If the panel does not have the Smart Tracker performance monitor you will not be able to locate the problem immediately. You have to start from zero and it will be very time consuming.
